STEP 06 / GETTING STARTED

WALL FOLLOWING.

To ensure all sensors are running well, try executing your first program on the car. This same script runs both on the real car as well as the Neobotics Playground twin simulator.

0 minutes

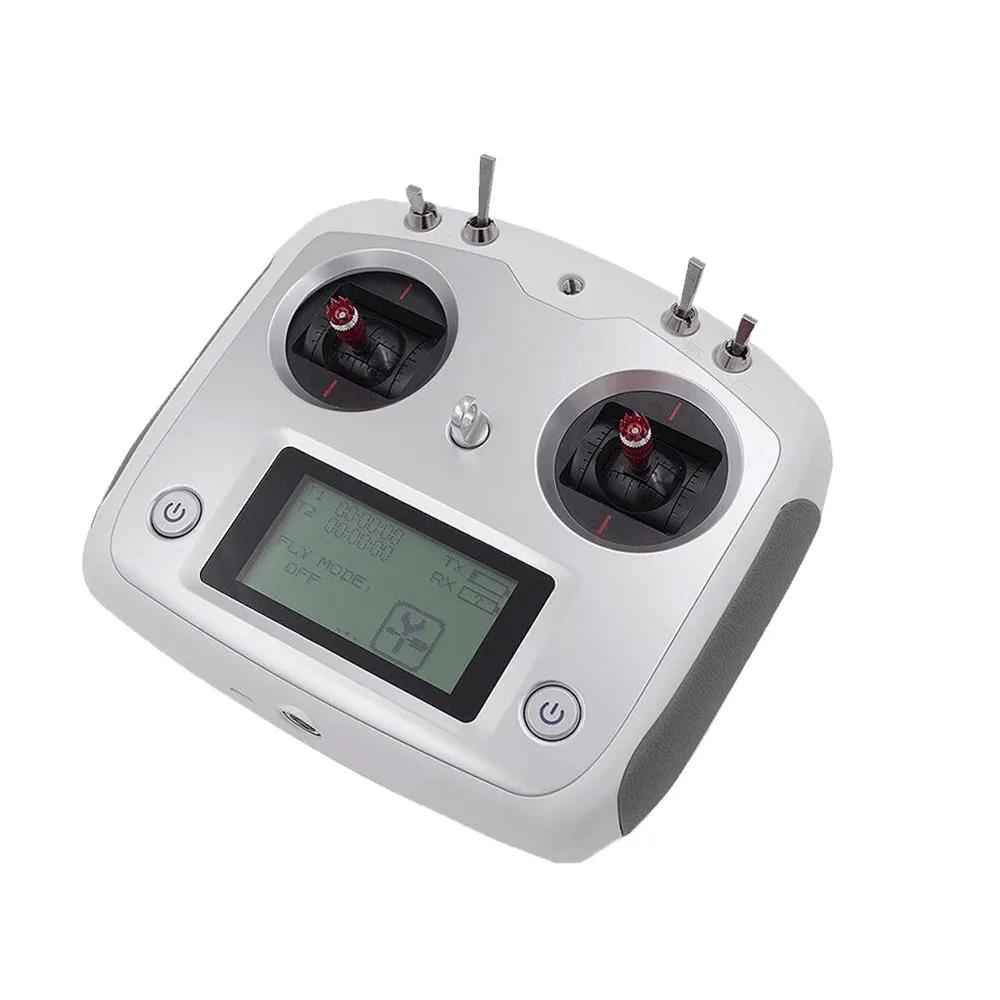

FIG. A / THE TWO SWITCHES THIS PAGE USES
The Flysky FS-i6S transmitter. SWA and SWB are the two toggle switches on the top-left shoulder.
SWA · MANUAL SPEED
UP SLOW · DOWN FAST
SWB · WHO DRIVES
UP MANUAL · DOWN AUTONOMY
On the Flysky transmitter, SWB decides who is driving: down hands the car to your program, up takes over with the sticks. SWA applies only while you drive manually: up is slow mode, down is fast.
FIG. B / WHAT YOUR PROGRAM WILL DO
FOLLOW THE RIGHT WALLTARGET GAP ≈ 50 cm90°0°DRIVEwall ahead → steer left
Each frame the car reads two LiDAR distances, straight ahead (0°) and to the right (90°), and steers to keep the right reading near a target gap. When the front reading drops at a corner, it turns away.
//Where to run it
  • Playground: open playground.neobotics.org in your browser, paste the code, place the car next to a wall, and click Run. There is nothing to install, so this is the easiest place for the first run.
  • Car: save the file as wall_follow.py in ~/jupyter_ws/neoracer-os/labs/, next to the labs that ship on the car. Easiest from JupyterLab in your browser (port 8888), or over SSH from Get on the car. Then run it from that folder:
    bash
    cd ~/jupyter_ws/neoracer-os/labs
python3 wall_follow.py
    The program starts immediately, and the car drives once you flip SWB to autonomy. Flipping SWB back returns the sticks to you, which is also how you take over if it heads somewhere you didn't plan.
01 / THE PROGRAM

THE PROGRAM.

python
import sys
sys.path.insert(0, "../library")   # the racecar-neo library on the car

import racecar_core
import racecar_utils as rc_utils

rc = racecar_core.create_racecar()

SPEED = 0.2        # low throttle while tuning
TARGET = 50        # cm: the gap we want to hold from the right wall
KP = 0.01          # steering per cm of error
FRONT_STOP = 50    # cm: a wall this close ahead means turn away

def start():
    rc.drive.stop()
    print(">> Wall follower running. Watching the LiDAR.")

def update():
    scan = rc.lidar.get_samples()                    # ~1440 distances, cm
    if len(scan) == 0:                               # no scan yet, right at start-up
        return

    # Distance straight ahead (0 deg) and to the right wall (90 deg).
    front = rc_utils.get_lidar_average_distance(scan, 0)
    right = rc_utils.get_lidar_average_distance(scan, 90)

    if front < FRONT_STOP:                            # corner ahead
        rc.drive.set_speed_angle(SPEED, -1)           # turn full left
    else:
        error = right - TARGET                        # +: too far from wall
        angle = rc_utils.clamp(KP * error, -1, 1)     # steer toward the wall
        rc.drive.set_speed_angle(SPEED, angle)

rc.set_start_update(start, update)
rc.go()
02 / WHAT TO EXPECT

WHAT TO EXPECT.

Place the car with a wall on its right and run it. It should hold a steady distance from the wall and turn at corners. If it oscillates or hits the wall, tune KP and SPEED and run it again.

Sim run
The simulator has no sensor noise, so the car holds its distance and turns without weaving. Use this run as the baseline to tune against.
Car run
Same code, real LiDAR. Small steering oscillations from sensor noise are normal. If the data is empty or frozen, that is a LiDAR fault, not your code.
Tuning
If KP is too high the car oscillates; too low and it drifts into the wall. Keep SPEED low while you tune, then raise it once the car holds the target distance.
